 HOME>>Portable Bluray DVD Player>>MBP-1061

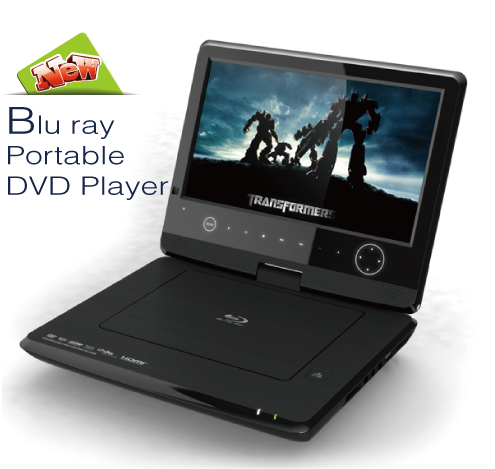

Portable DVD Player>>MBP-1061 (10 inch )


Hardware Specification
◆Solution :MTK8550
◆Laser :SANYO414
Panel Specifications
◆ Panel :10 inch HD Digital Panel
◆ Screen Ratio :16:9
◆ Resolution :1024*600
◆ Contract Ratio  :500:1
Power Supply Specifications
◆ Power Supply(Adapter) :DC 12V
◆ LI Battery :Built -in 7.4V(The Battery can play about 3  hours)
◆ Power Indicator (LED) :Power ON :Green   ; Charging :Red  ;
◆ Charge Management :Yes
Main Features
◆ Playback disc formats :BD,BD-R,BD-RE,DVD-R/RW,DVD+R/RW,DVD-Video,VCD,CD,CD-R/RW
◆ Video formats :H.264/VC1/MPEG1/MPEG-2/MPEG4
◆ Audio formats :Dolby Digital ,  Dolby Digital Plus,  Dolby TrueHD,    DTS-HD
◆ USB HOST :High speed USB 2.0 support U DISK and USB HDD
◆ Hihg Difinition video output :SD/HD max.1920x1080 pixel
◆ LAN :Ethernet ,10/100Mbps,BD-LIVE ,BD-J
◆ HDMI :Support V1.3 HDMI/HDCP
◆ Card reader :SD/MMC /MS
◆ AV OUTPUT/INPUT :Yes
◆ Anti-shock :Yes
◆Support panel rotating :Yes
◆ TV :Optional(ISDB-T :Only FULL SEG ready)
JACKS
◆ HDMI Socket :1PCS
◆ LAN Socket :1PCS
◆ USB Socket  :1 pcs
◆SD/MMC /MS Card Jack         :1 pcs
◆ 4.0 mm DC-IN Jack         :1 pcs
◆3.5 mm stereo earphone jack       :1 pcs
◆3.5 mm AV jack       :2 pcs (AV OUT and AV IN)
◆ Buttons  :Soft capacitiveTouch Keys
Accessories
◆AV Cable      :1 pcs (2CH Audio, 1CH CVBS)
◆ Remote control         :1 pcs
◆User Manual           :1 pcs
◆Power Adapter :1 pcs
◆ Warranty cards :1 pcs
◆ Headphone  Cable   :1 pcs
◆ Antenna    :Optional
◆ Car Adapter :1 pcs
